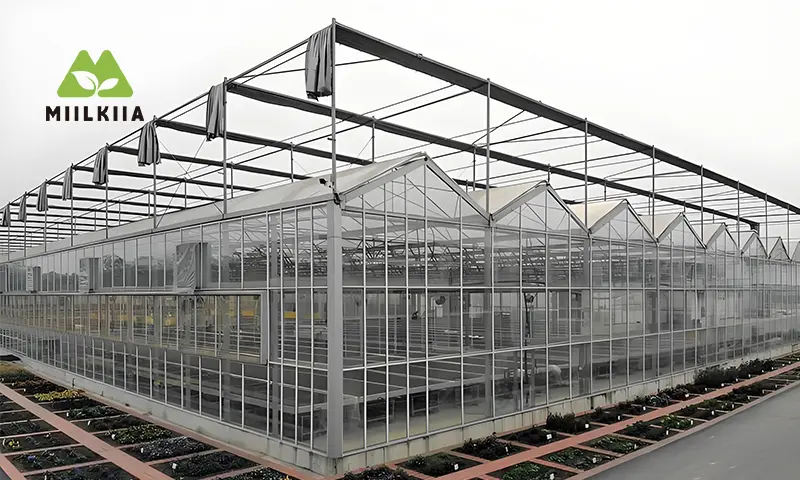

High Light Transmission Glass Greenhouse – Venlo Structure for Commercial Agriculture and Research Use

Unit Price: USD 25–95/square meterMOQ: 500 square metersMaterials: Tempered Glass + Galvanized SteelSize: Customizable✅ 90%+ Light transmission for enhanced photosynthesis✅ Rigid construction with snow & wind resistance✅ Fully automated climate, irrigation, and shading control✅ Suitable for vegetables, flowers, fruit trees, and R&D cultivation

product details

Application Scenarios – Where This Greenhouse Fits Best

✅ Commercial-scale vegetable and flower production

✅ Research institutions and modern agricultural parks

✅ Cold and snowy climates requiring high insulation

✅ High-value crop cultivation (orchids, berries, tomatoes, etc.)

✅ Seedling and propagation bases with light-demanding crops

Specifications

Item	Details
Structure Type	Venlo-Type Steel Frame
Cover Material	4–5mm Single / 6–8mm Double Tempered Glass
Structure Material	Hot-Dip Galvanized Steel (≥275g/m²)
Roof Shape	A-Type / Venlo / Single-slope (customizable)
Wind Load Resistance	≥ 120 km/h
Snow Load Capacity	0.4–0.6 KN/m²
Span Width	8m / 9.6m / 10.8m
Bay Width	4m / 4.5m / 5m
Ridge Height	4.5m–6.5m
Service Life	≥ 20 years
Drainage System	Integrated PVC Gutter
Ventilation System	Manual or Automated Roof & Side Vents
Optional Systems	Cooling, Shading, Heating, Hydroponics, CO₂, Irrigation, Lighting

Key Features & Competitive Advantages

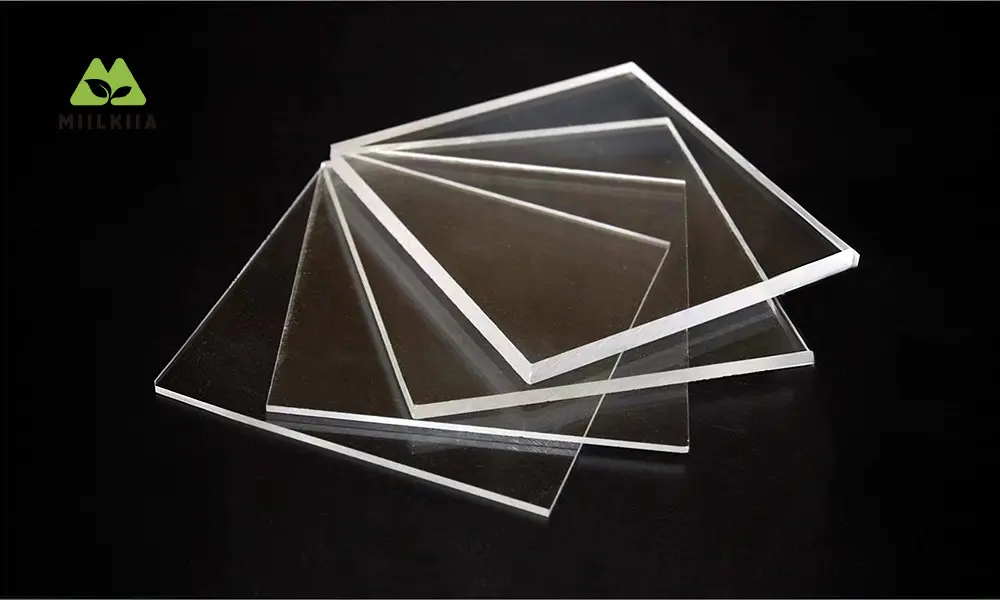

♦ High-Transparency Glass Glazing

● Use of 4mm / 5mm single tempered glass or 5+6A+5mm double-layer insulating glass

● Light transmittance > 90% for better photosynthesis

● Excellent UV resistance, long lifespan, and aesthetic appeal

Glass

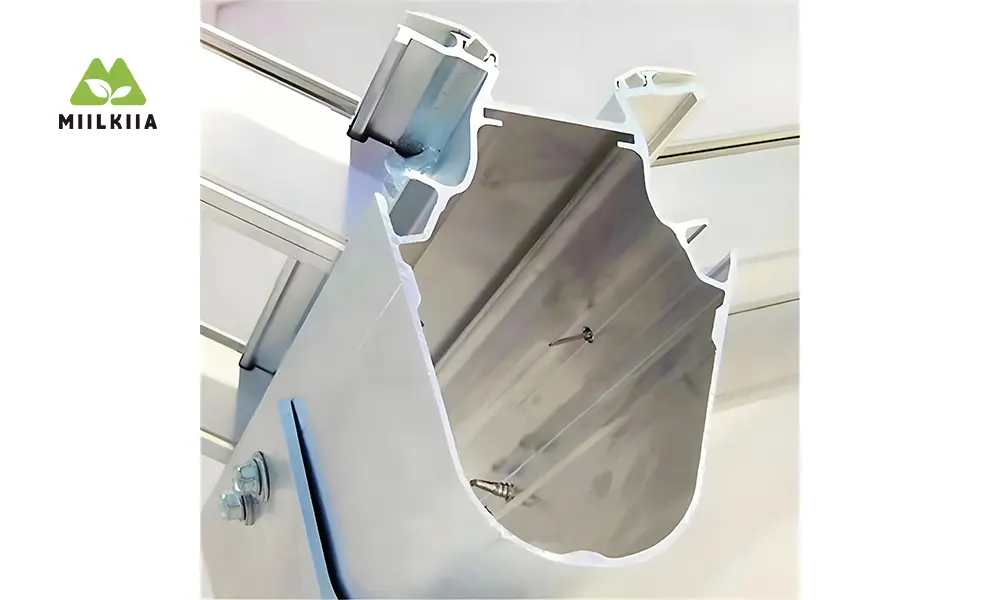

♦ Aluminum Alloy Drainage Gutter

● Corrosion-resistant aluminum alloy ensures long-term durability

● Integrated water collection and drainage design

● Smooth surface prevents clogging and algae build-up

● Strong load-bearing capacity, compatible with snow and insulation quilt loads

gutter

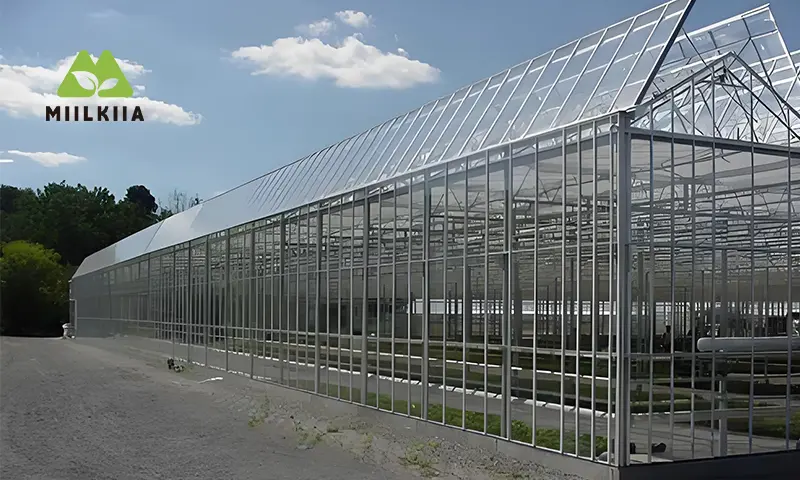

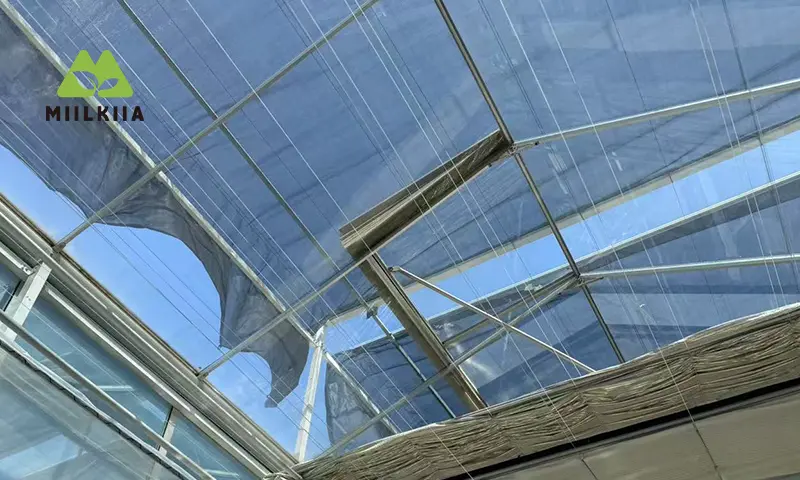

♦ Optional Roof Ventilation Systems

● Choice of manual or electric top-opening windows

● Provides natural ventilation to regulate humidity and temperature

● Equipped with insect nets to keep pests out

● Rainproof structures available for areas with frequent precipitation

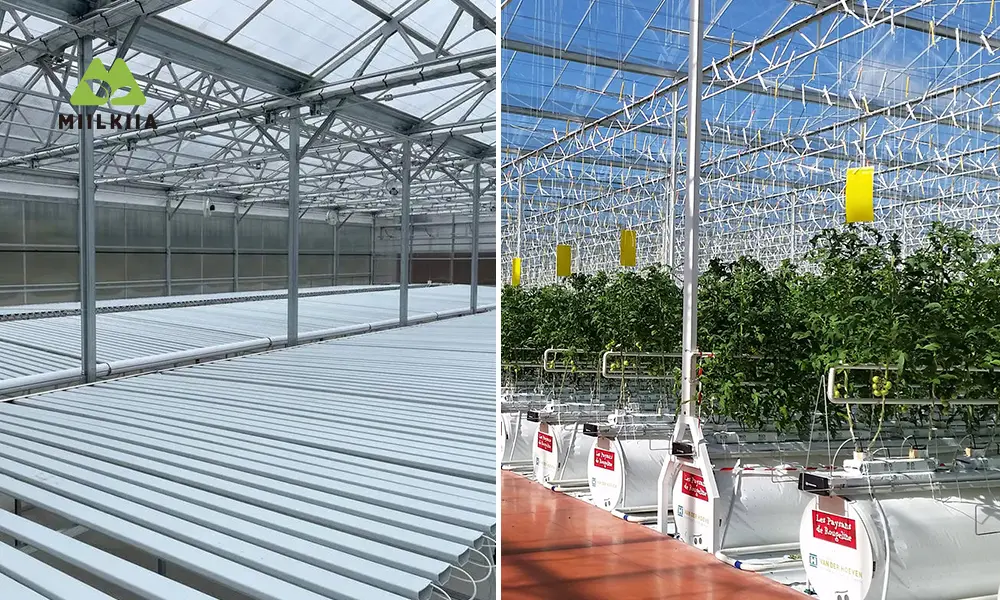

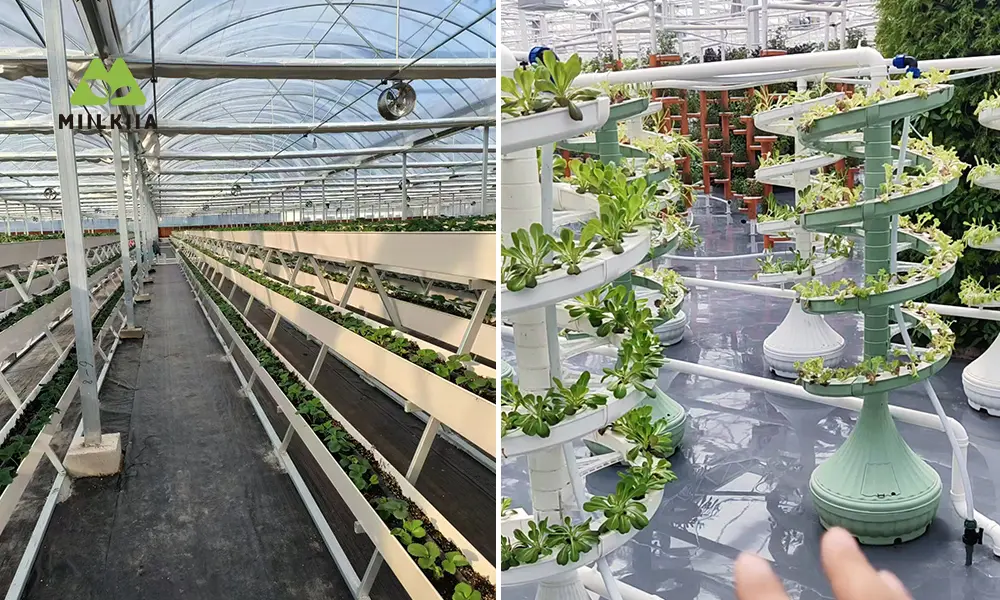

♦ Smart Planting Systems (Optional)

● Support for vertical hydroponics, NFT systems, and ebb & flow tables

● Efficient use of space, suitable for leafy greens, herbs, and strawberries

● Optional automated lighting, irrigation, and fertilization integration

Solving Real Grower Problems

Challenge	Our Solution
Low winter temperatures	Double-glass option + hot water heating for thermal insulation
Labor-intensive management	Smart automation system reduces manual labor and error
Humidity & fungal issues	Roof vents + fans + dehumidifiers for optimal climate control
Crop sunburn & overheating	External shading nets to reduce light intensity
Uneven irrigation	Automated drip system with moisture sensors
Pest invasion	Integrated insect-proof netting + climate-sealed environment

Packaging & Delivery

● Packaging: Steel frames in bundles, glass panels in reinforced crates

● Lead Time: 15–25 working days depending on order size

● Support: On-site installation guidance / remote video instruction

Frequently Asked Questions

Q1: Is tempered glass safe during installation?

A1: Yes. Tempered glass is 4–5 times stronger than regular glass and breaks into small, harmless particles.

Q2: Can I install solar panels on the roof?

A2: Yes, we offer customizable designs that can integrate solar modules on non-covered or roof-top structures.

Q3: Is the smart control system included?

A3: It’s optional. We provide smart controllers for temp, humidity, CO₂, lighting, and fertigation—fully integrated or modular.

Q4: What if I need a customized size?

A4: Absolutely. We design according to your land layout and cultivation needs.

Q5: How long will the greenhouse last?

A5: With proper maintenance, the frame lasts over 20 years, and glass panels can be replaced when needed.
