Photovoltaic Systems

Core Working Principles

PV systems operate by converting sunlight into electrical energy:

● Solar Energy Capture:

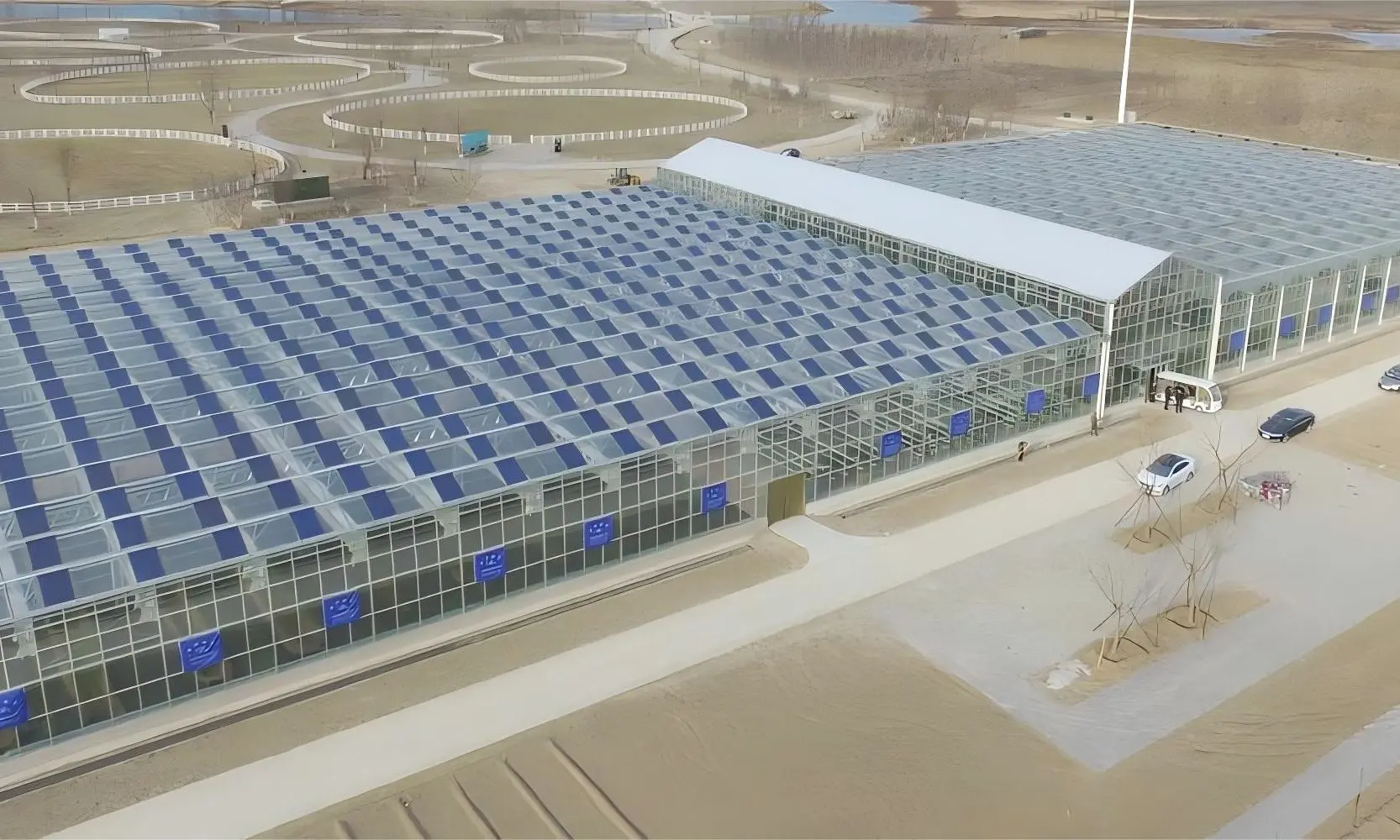

Solar panels on greenhouse roofs or walls capture sunlight and convert it into direct current (DC) electricity.

● Energy Conversion:

DC electricity is converted into alternating current (AC) by an inverter for use by greenhouse equipment.

● Power Distribution and Storage:

AC electricity powers greenhouse devices, and excess energy can be stored in batteries or fed back into the grid.

● Monitoring and Control:

Smart systems monitor and adjust greenhouse conditions, optimizing energy use and environmental control.

Applications in Greenhouses

● Dual Functionality:

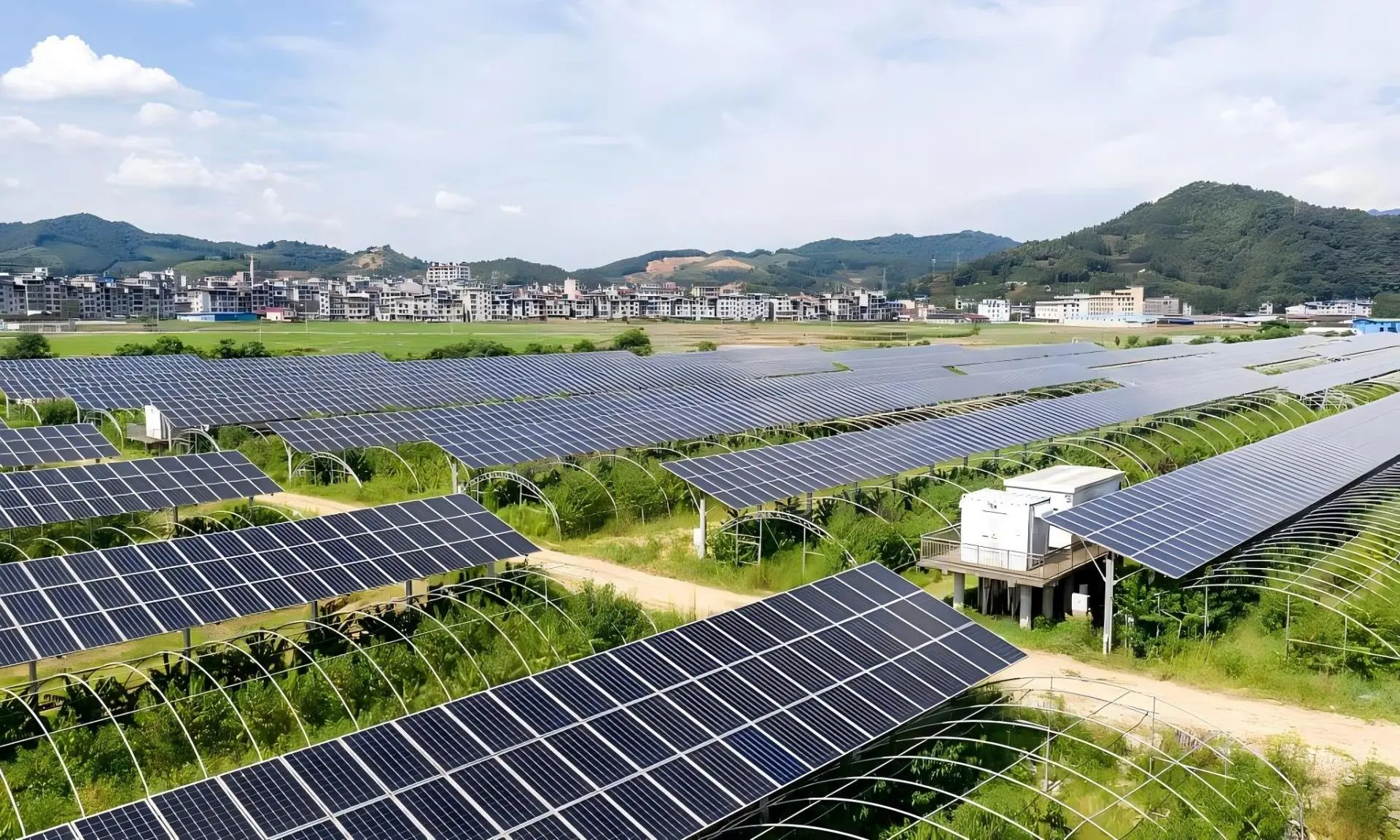

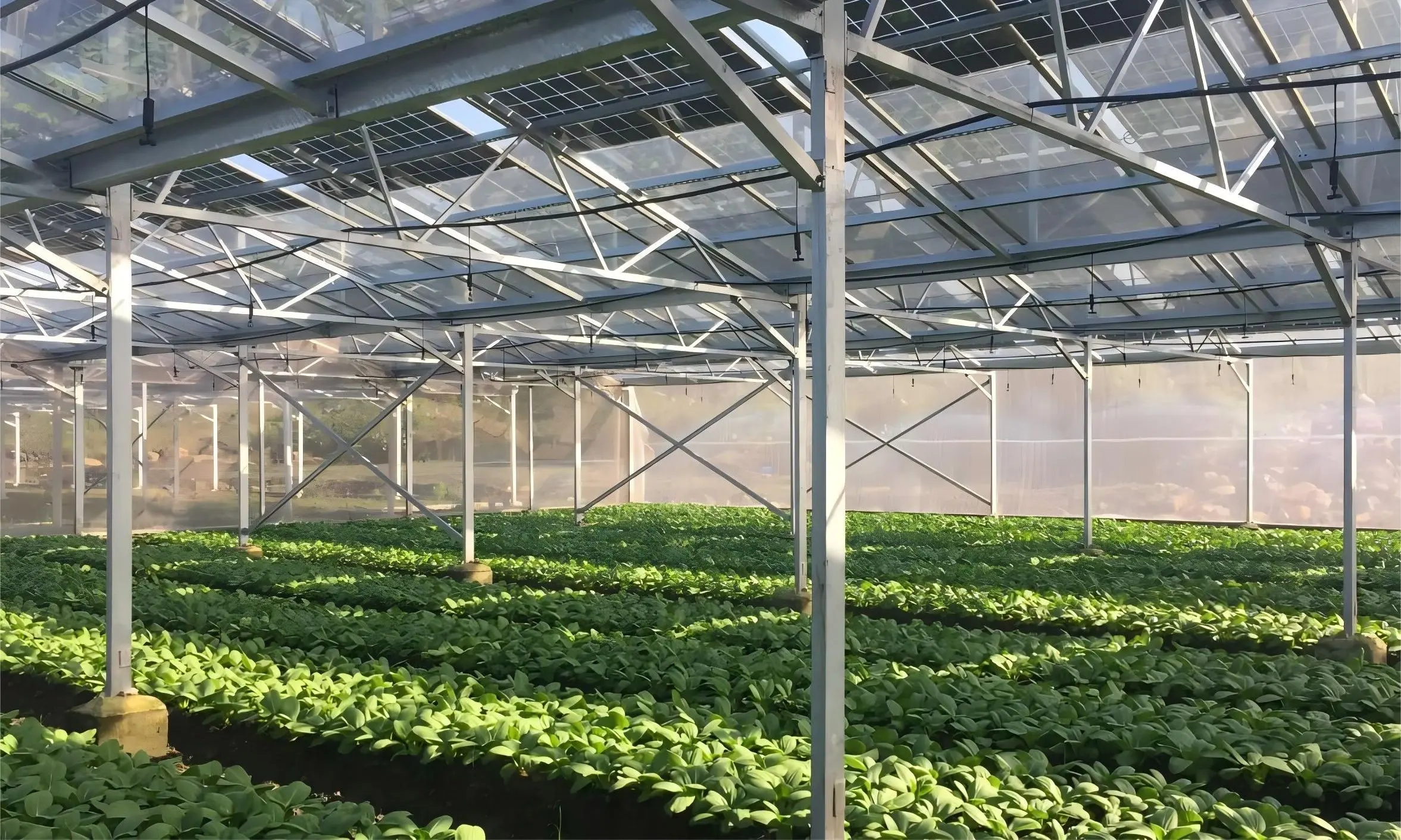

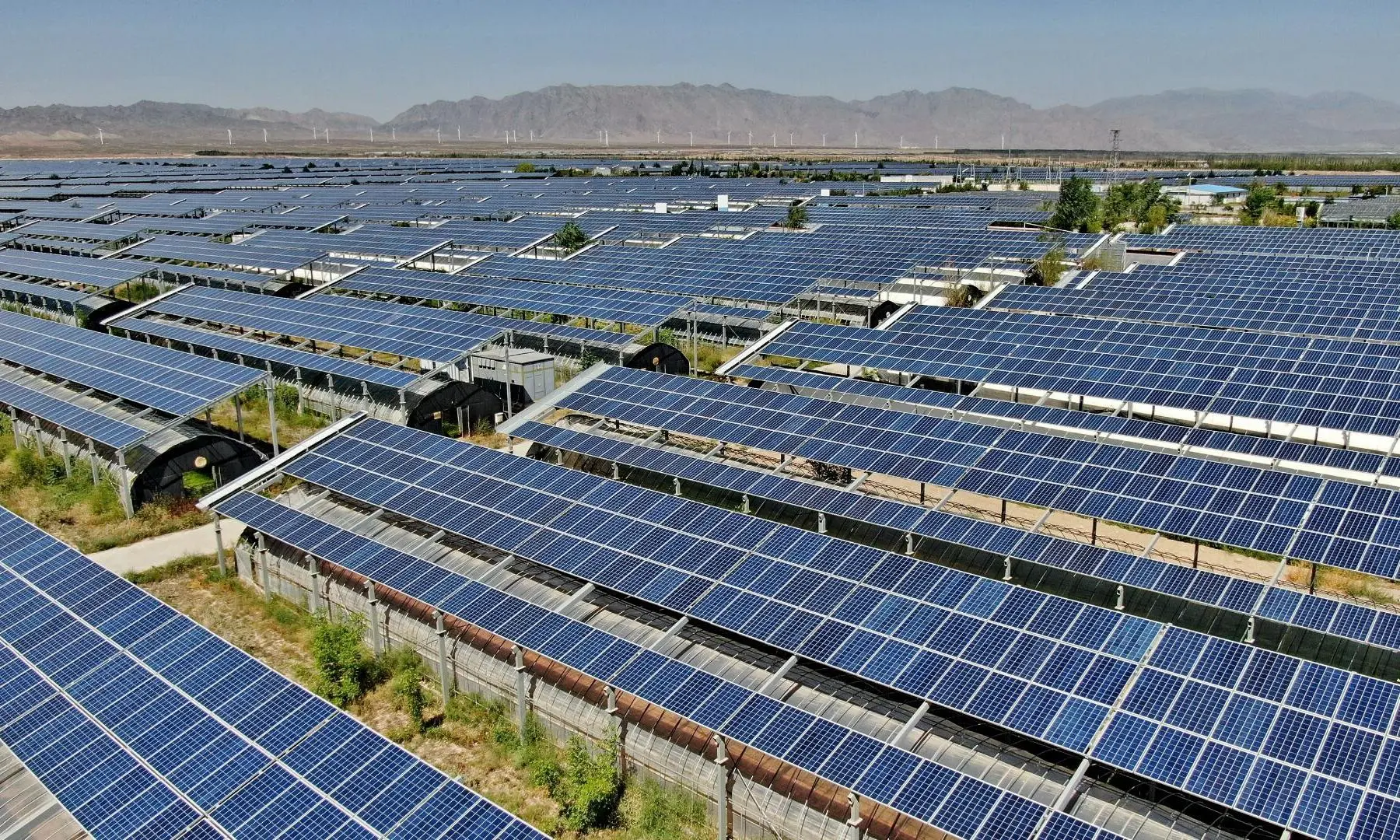

They enable simultaneous power generation and agricultural production, optimizing land use.

● Energy Self-Sufficiency:

PV systems reduce reliance on external power and lower energy costs while improving the greenhouse environment.

● Versatility:

Besides power generation, PV systems provide protection against harsh weather and can be used to produce fresh water and collect rainwater.

Components of Photovoltaic Systems

● Solar Panels:

Capture solar energy and convert it into DC electricity. Common types include monocrystalline, polycrystalline, and thin-film solar panels.

● Inverter:

Converts DC electricity into AC electricity for use by greenhouse equipment. Common inverters include string inverters and microinverters.

● Battery Storage:

Stores excess electricity to ensure power supply when sunlight is insufficient. Lithium-ion batteries are commonly used.

● Charge Controller:

Regulates voltage and current from the solar panels to the battery, preventing overcharging and extending battery life.

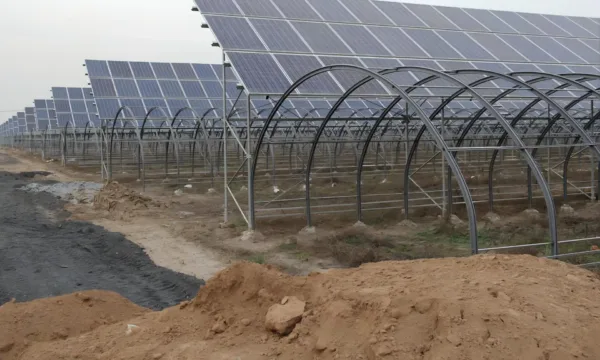

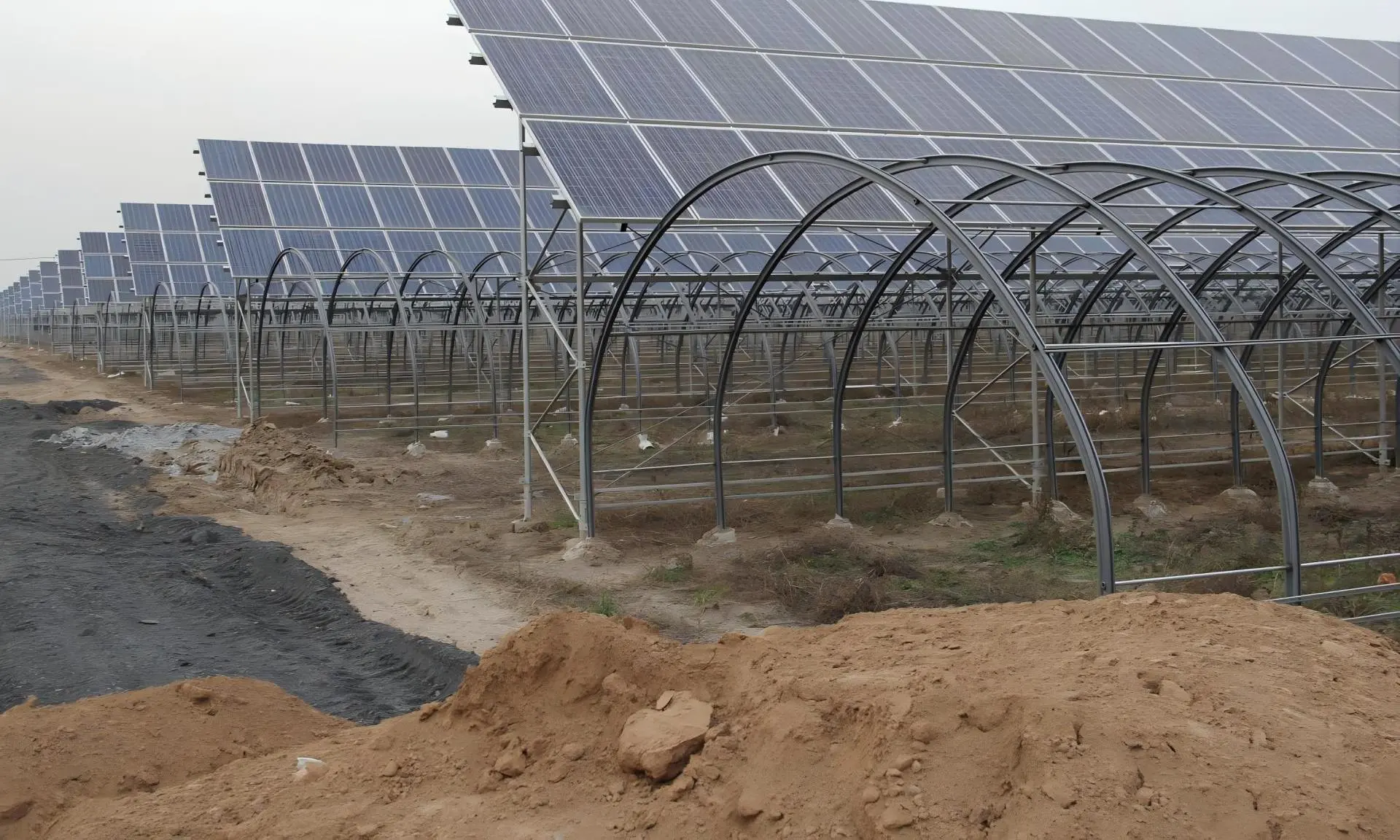

● Mounting System:

Secures the solar panels, ensuring they capture sunlight at the optimal angle.

● Cables and Wiring:

Transmit electricity and ensure system safety.

● Monitoring System:

Continuously monitors the performance of the PV system to ensure optimal operation.

● Safety Equipment:

Includes circuit breakers and fuses to protect the system from electrical faults.

Energy Savings and Production Example

For a 1,000-square-meter greenhouse:

● Solar Irradiance: Assume an average solar irradiance of 4 kWh/m²/day.

● Panel Efficiency: Assume a solar panel efficiency of 20%.

● Usable Area: If 70% of the 1,000-square-meter roof area is used for solar panels, this gives 700 square meters.

Daily Power Generation Calculation:

Daily Power Generation=700m2×4 kWh/m2×0.20 = 560 kWh/day

Annual Power Generation Calculation:

Annual Power Generation = 560 kWh/day × 365 days/year = 204,400 kWh/year

Energy Demand and Savings:

Assuming the annual energy demand of the greenhouse is 150,000 kWh, the PV system can meet approximately 100% of the energy needs, with an additional 54,400 kWh/year available for the grid.

PV systems enhance greenhouse operations by providing a reliable, sustainable power source and optimizing environmental conditions. This system offers new opportunities for modern agriculture, particularly in regions with limited resources or harsh environmental conditions.
